FSCUT 4000E Medium Power EtherCAT Bus System

|

 Product Description

FSCUT4000E is a cost-effective CNC system dedicated to laser cutting. It is based on EtherCAT bus technology and capable of motion control, laser control, and cutting gas control. It is common used in sheet metal, kitchen ware, lamps and such industries.

• Support AI, DXF, PLT, Gerber, LXD file format, and standard G code created by Master Cam, Type3, ARTCUT etc.

• Support file optimization includes: remove duplicates, connect unclosed segments,remove minimal graphic and distinguish inner and outer contour and set machining sequence automatically. Above functions can be customized or executed manually.


• Support common editing and typesetting functions, including scaling, translation,mirroring, rotation, alignment, copying, combination and so on.


• Support setting lead line, kerf compensation, micro-joint, bridge, inner/outer cut, seal etc.


• Automatically distinguish the inner and outer contour to determine the compensation direction, and check the lead line.


• Support curve splitting, merging, and smoothing, text to curve, part combination and explode etc.


• Time-saving and labor-saving automatic nesting function can generate co-edges and remnant.


• Plates can be easily filled by various array modes.


• Flexible automatic and manual sorting functions. Users can group the graphics to lock the cutting sequence.


• Preview the cutting sequence.

• Quick set fly cut path.


• Support various piercing methods including segmented pierce, incremental pierce,pre-pierce, group pre-pierce. Users can also set separate parameters of pierce and cutting including laser power, frequency, gas, pressure, peak power, delay, cut height etc.


• Real-time frequency and power curve editing. Set slow start parameters.


• Powerful material library function allows all process parameters to be saved for reuse of the same material.


• Breakpoint memory when machining interrupted. And users can select resume position before or after breakpoint. Only machining selected graphic supportable.


• Users can locate to specified position in stop or pause status and resume machining.


• Support round tube and plane sheet cutting; Support intersected line cutting.


• Support cutting at fixed height and laser head follows in from outside plate1.


• Support various find-edge methods with high precision.

• Powerful expansion capacity with more than 30 PLC, over 50 programmable processes.2


• Support programmable input and output port, and alarm input.


• Support remote control of the system through wireless keyboard and Ethernet3

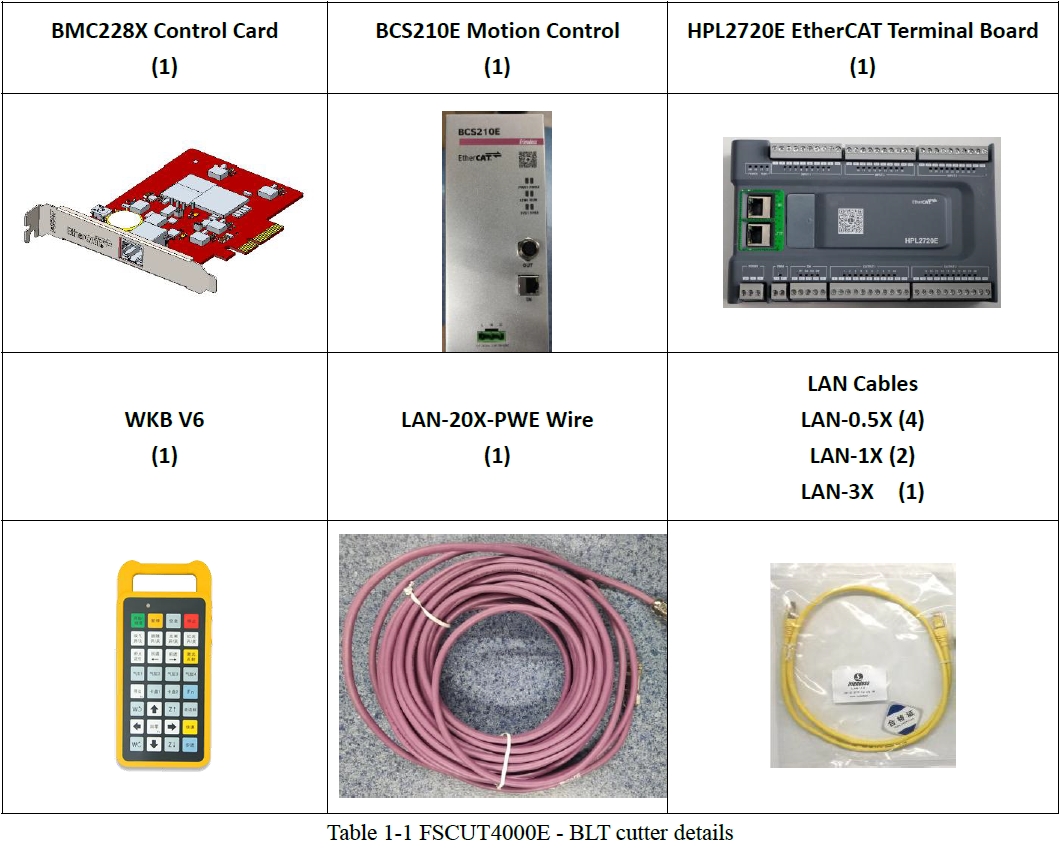

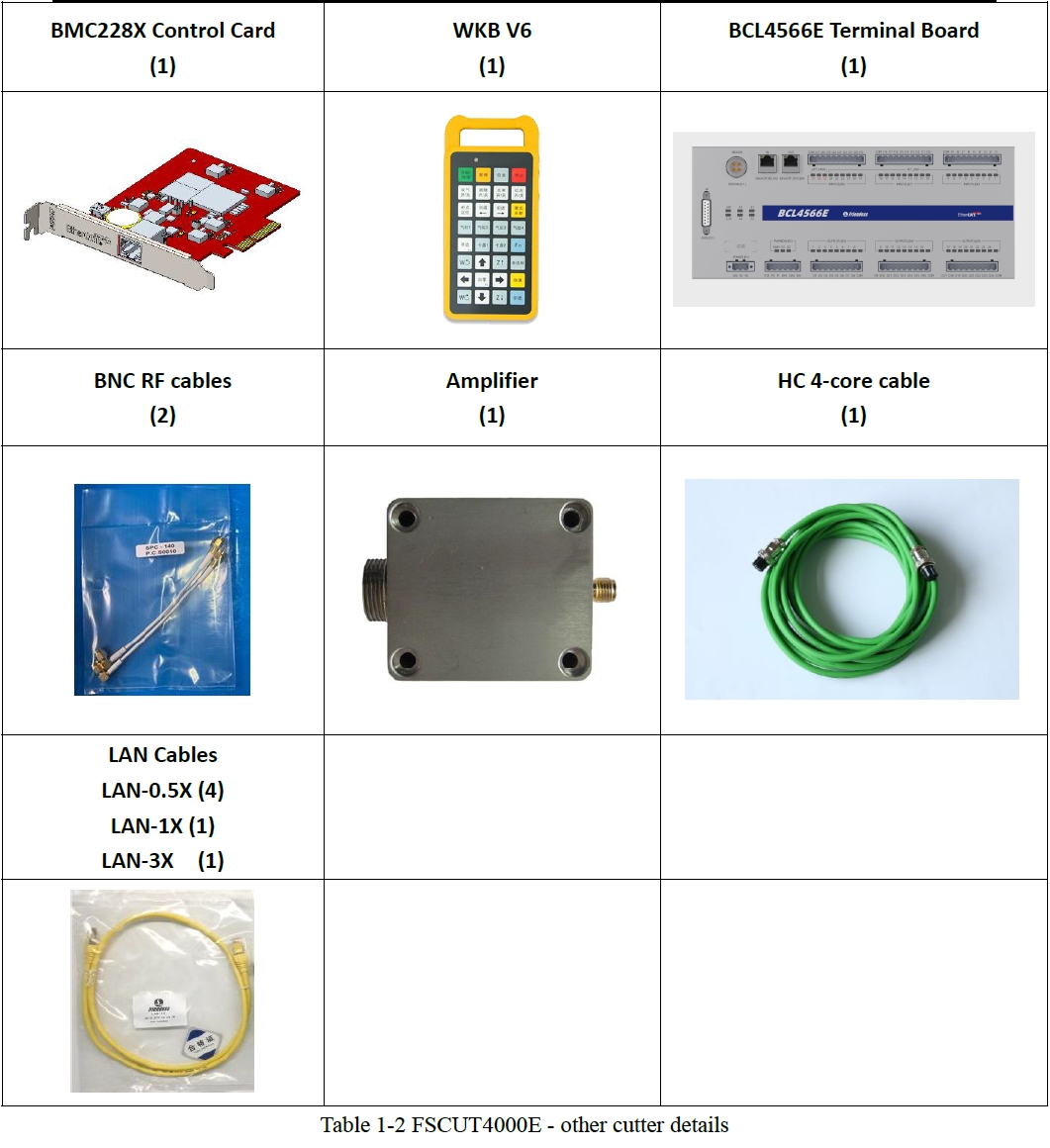

FSCUT4000E bus CNC system includes BMC228X Control Card, BCL4566E terminal board or BCS210E height controller, HPL2720E, WKB V6 and related cables, etc.

Note: FSCUT 4000E packages contain hardwares and quantity that might be slightly different.  Please consult customer support if any questions.

|
