FSCUT 8000 Ultra High Power Fiber Cutting System

|

 Product Description

The FSCUT8000 system is a dedicated bus CNC control system for high power laser processing.It is based on EtherCAT bus technology and integrates BClink single network cable display transmission technology. It is a perfect solution for high-end laser cutting CNC machine tools.

• Machining module is separated from Nesting. The drawing-optimization functions are easy to use while the machining quality is guaranteed.

• Plan module can connect with CypNest to remotely send task file from office to machine,and manage local production data, automatically generate the report for benefit analysis.

• Production is the main module with Flexible and Volume production mode for options to reach the multiple-scenario and batch production requirements.

• Debug module is for adjusting cutting technique and cutting samples, supporting DXF、LXD、G、NC file format, and standard G code from ACTcut and Lantek.

• Process module can help users to build a well-established technique library and manage the material and cutting parameter data conveniently.

• Diagnosis highly integrates the management and data analysis of core machine device in nine block which is very convenient for users to troubleshoot and check usage information of each components.

• Maintenance module monitor the working status of each device of machine and give advice about the maintenance and repair according to the preset security line and equipment service time, so as to stabilize the machining, extend machine lifespan, and maintain accuracy.

• Support local editing and optimization of drawings to improve production efficiency.

• Support High-speed Capacitive FindEdge.

• Reproduction by visual remnant plus process monitor, Drag the graphic to the remnant plate and quick start production.

• Automatic nozzle clean and replace process, task file switch, follower calibration, laser beam centering and maintenance module for assisting production process.

• Support file optimization includes: remove duplicates, connect unclosed segments, remove minimal graphic and distinguish inner and outer contour and set machining sequence automatically.

• Support various piercing methods including flash piercing, segmented pierce, incremental pierce, pre-pierce, group pre-pierce. Users can also set separate parameters of pierce and cutting including duty cycle, frequency, laser pattern, gas, pressure, peak power, delay, cut height etc.

• Real-time frequency and power curve editing. Set slow start/end parameters.

• Support processing breakpoint memory, able to start cutting from breakpoint forward and backward.

• Support Positioning to and start cutting at any point in the process of Stop and Pause.

• Powerful expansion capacity with more than 30 PLC, over 50 programmable processes.1

• Provide programmable inputs, outputs, alarm and early warning inputs.

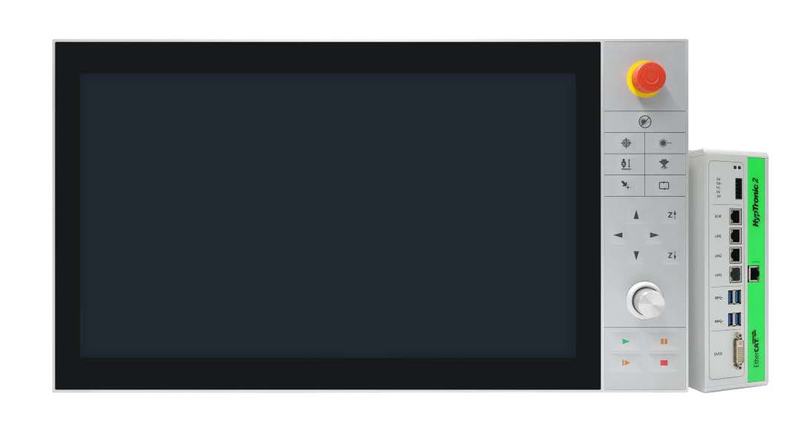

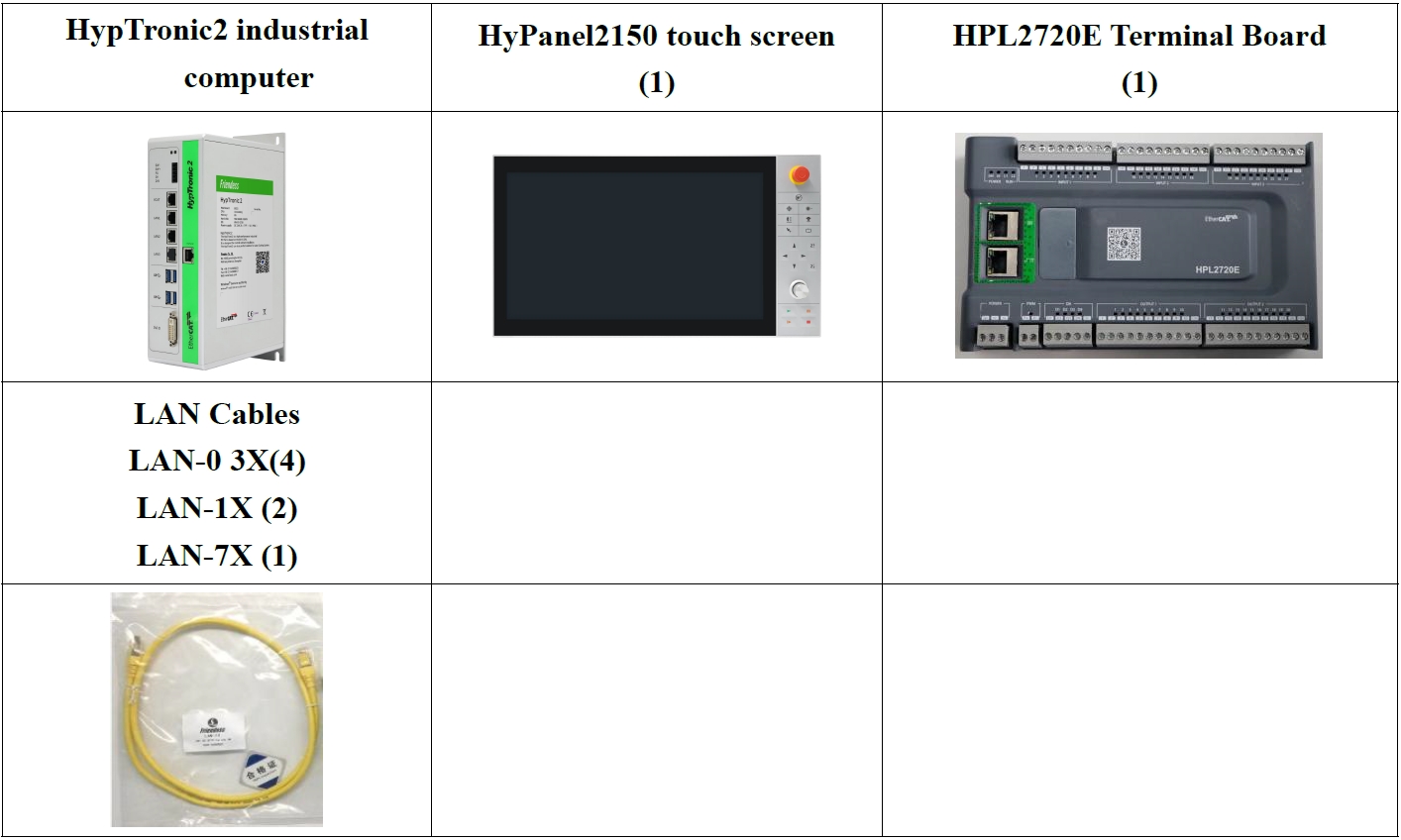

FSCUT8000 EtherCAT CNC system includes HypTronic2 industrial computer, HyPanel2150 touch screen, HPL2720E expansion board, BCS100E or BCS210E height controller and related wires, etc.

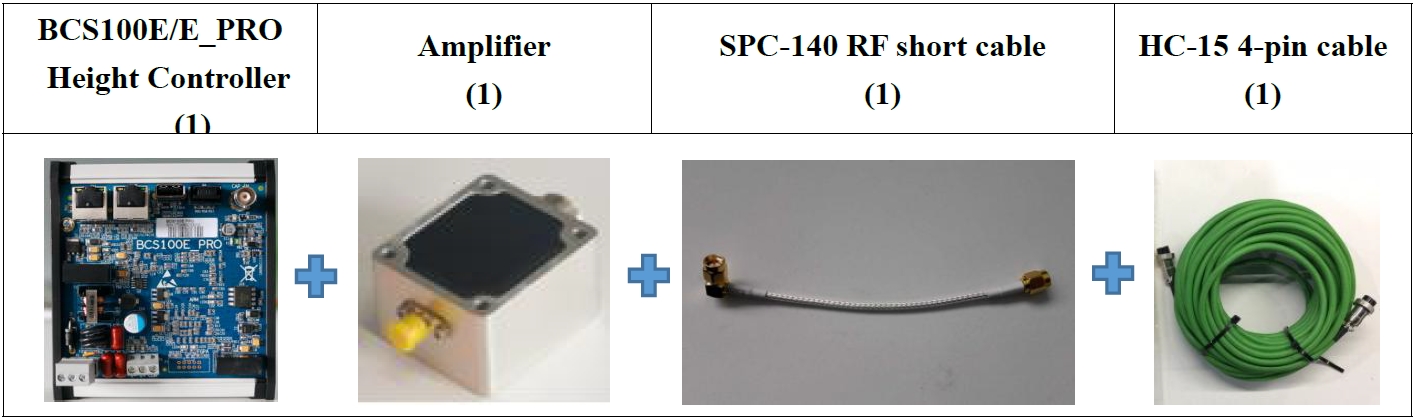

If BCS100E or BCS100E_PRO height controller is used, preamplifier, SPC-140 RF short cable and HC-15 4-pin cable are required:

If BCS210E height controller is used, it should be equipped with PWE cables:
