| Product Description
AVR series single, three phase intelligent voltage regulator is the use of international advanced Western European advanced technology, combined with China's national conditions, designed for stable AC voltage. When the external power supply network voltage fluctuations or load changes caused by voltage fluctuations, it can automatically maintain the stability of the output voltage, compared with other types of regulators with large capacity, high efficiency, no waveform distortion, stable voltage regulation and other advantages.
Applicable equipment:
Automatic CNC automatic punching machine | PCB drilling machine precision wire-cutting machine | program control system of CNC numerical control machine | mirror edm machine safety alarm system | metal laser cutting machine | automatic SMT component inserter exposure laser drawing machine | equipment | medical equipment imported printing machine | CNC mold engraving machine | precision circuit etching machine | precision color printing equipment | chemical equipment

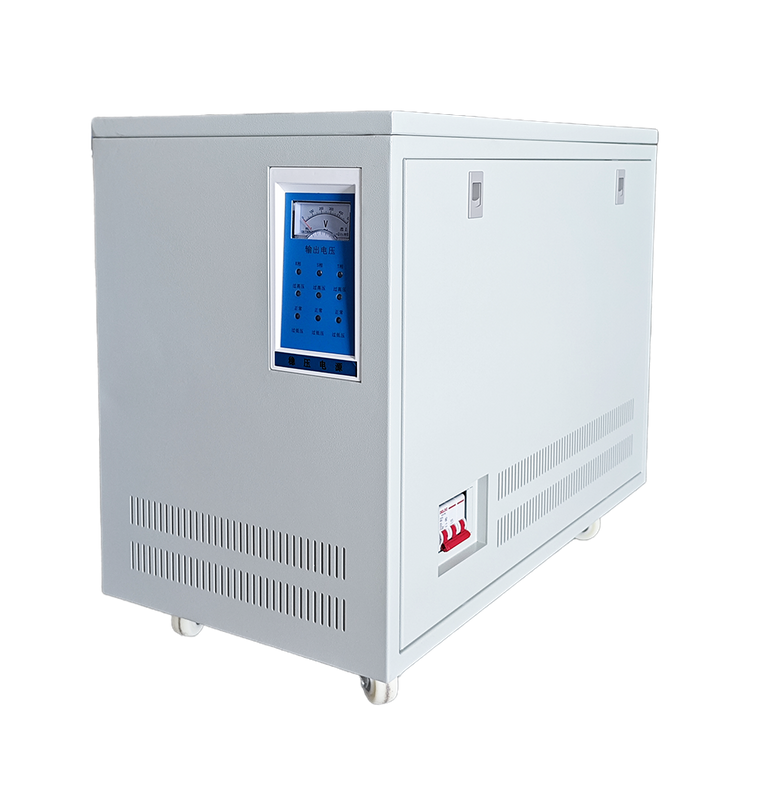

voltage regulator 30~120KVA

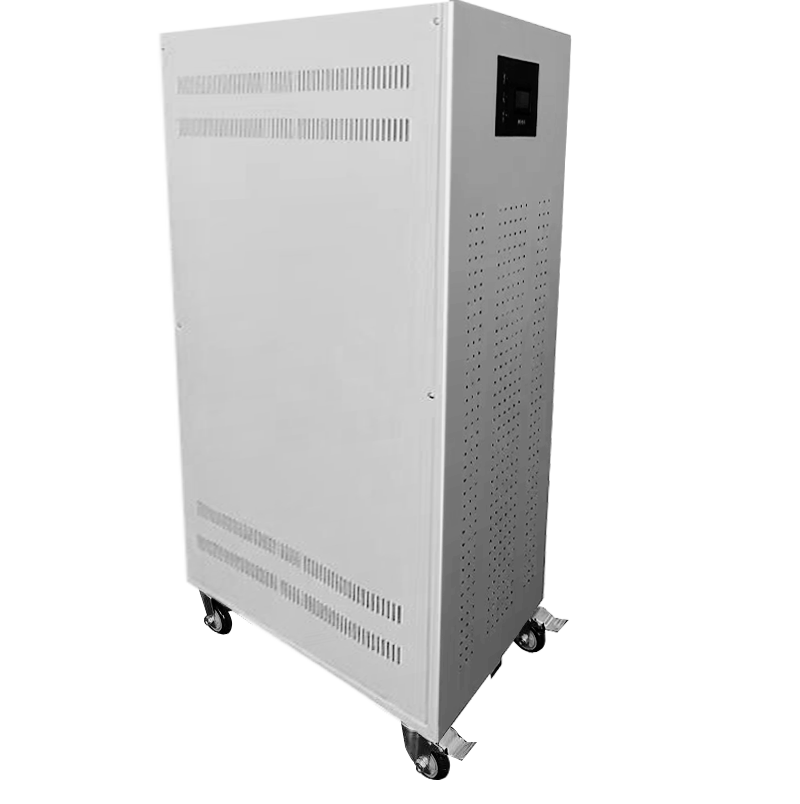

voltage regulator 150~200KVA
Three phase stabilization machine
|
Selection Table
| Product name | Product model | Pre-package size(mm) | Package size(mm) | Packing weight(kg) | Adaptive laser power(w) |
| Three-phase intelligent voltage regulator | AVR-30KVA | 600X370X470 | 610X390X480 | 88 | 1500W |
| Three-phase intelligent voltage regulator | AVR-50KVA | 700X360X570 | 710X380X580 | 97 | 2000W/3000W |
| Three-phase intelligent voltage regulator | AVR-80KVA | 800X440X700 | 820X460X720 | 130 | 4000W/6000W |
| Three-phase intelligent voltage regulator | AVR-100KVA | 800X440X700 | 820X460X720 | 150 | 6000W/8000W |
| Three-phase intelligent voltage regulator | AVR-120KVA | 850X540X770 | 860X550X780 | 265 | 8000W/10000W |
| Three-phase intelligent voltage regulator | AVR-150KVA | 600X650X1255 | 610X660X1300 | 280 | 12000W/15000W |
| Three-phase intelligent voltage regulator | AVR-200KVA | 750X600X1255 | 760X610X1300 | 300 | 20000W |
| Three phase stabilization machine | SGAVR-30KVA | 600X380X970 | 610X400X980 | 145 | 1500W |
| Three phase stabilization machine | SGAVR-50KVA | 700X360X1000 | 720X380X1125 | 170 | 2000W/3000W |
| Three phase stabilization machine | SGAVR-80KVA | 700X440X1100 | 720X450X1125 | 300 | 4000W/6000W |
| Three phase stabilization machine | SGAVR-100KVA | 800X650X1250 | 820X660X1230 | 375 | 6000W/8000W |
| Three phase stabilization machine | SGAVR-120KVA | 800X650X1250 | 820X660X1230 | 435 | 8000W/10000W |
| *Note: The voltage of the three-phase stable transformer needs to be customized according to demand. | |||||
|
Technical Parameters
Product name | Three-phase intelligent AVR series voltage regulator | ||||||
| Rated capacity | 30KVA | 50KVA | 80KVA | 100KVA | 120KVA | 150KVA | 200KVA |
| Stable voltage range | ±15% | ||||||
| Voltage regulation accuracy | ≤±2% | ||||||
| Power frequency | 50HZ / 60HZ | ||||||
| Rated input/output current | 45.6A | 76A | 121.6A | 152A | 182.4A | 228A | 304A |
| Input/output voltage | RAC ≤ DC 380V | ||||||
| Applicable load | Suitable for resistive, inductive, capacitive and nonlinear loads | ||||||
| Voltage regulation system | Compensating type | ||||||
| Heat dissipation mode | Forced air cooling | ||||||
| No-load current | 300mA | ||||||
| efficiency | ＞ 98% | ||||||
| Temperature rise | 48° | ||||||
| Waveform distortion rate | ＜ 0 | ||||||
| noise | ＜ 45db | ||||||
| complexion | As per customer sample | ||||||
| Withstand voltage test | 2000 V | ||||||
| Insulation resistance | 1MΩ | ||||||
| Protection function | There are over voltage, under voltage, phase, short circuit and other protection functions | ||||||
| Strain time | Voltage stabilization speed < 100ms, regulation speed > 25V / 0.1s | ||||||
| Overload capacity | Allows 1.2 times instantaneous current | ||||||
| Use environment | A: no water droplets, steam and oily dust; B: no corrosive, flammable, explosive gas, liquid; C: no floating dust and metal particles; D: solid vibration-free foundation; E: the lowest temperature -5℃, the highest temperature +40℃ humidity 93% (no water droplets on coil surface); F: Altitude: < 1000m. | ||||||
