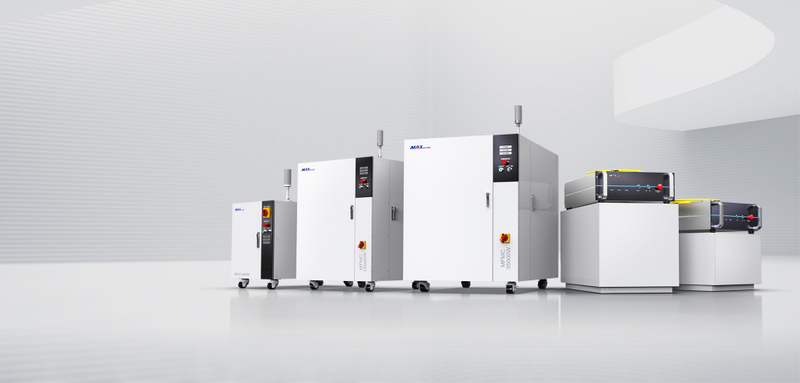

MAX 1000W-20000W Continuous Fiber Laser

MAX continuous fiber laser is a high electro-optical conversion efficiency, compact volume, good beam quality, maintenance-free high power fiber laser. It adopts water cooling method, with a wavelength range of 1060nm~1100nm, and a laser efficiency of>30%.

Availability:

Quantity:



Add to Basket

Product Description

|

Product Description

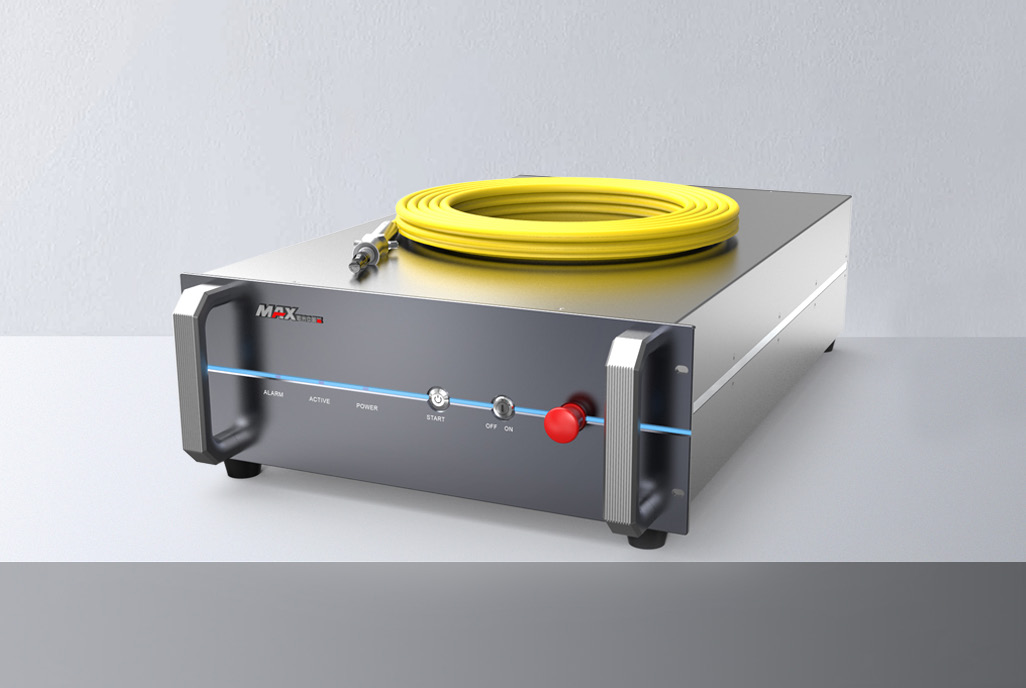

MFSC1000~3000W Single Module CW Fiber Laser

MFSC4000~6000W Single Module CW Fiber Laser

MFMC 6000W~20000W Multi Module Fiber Laser

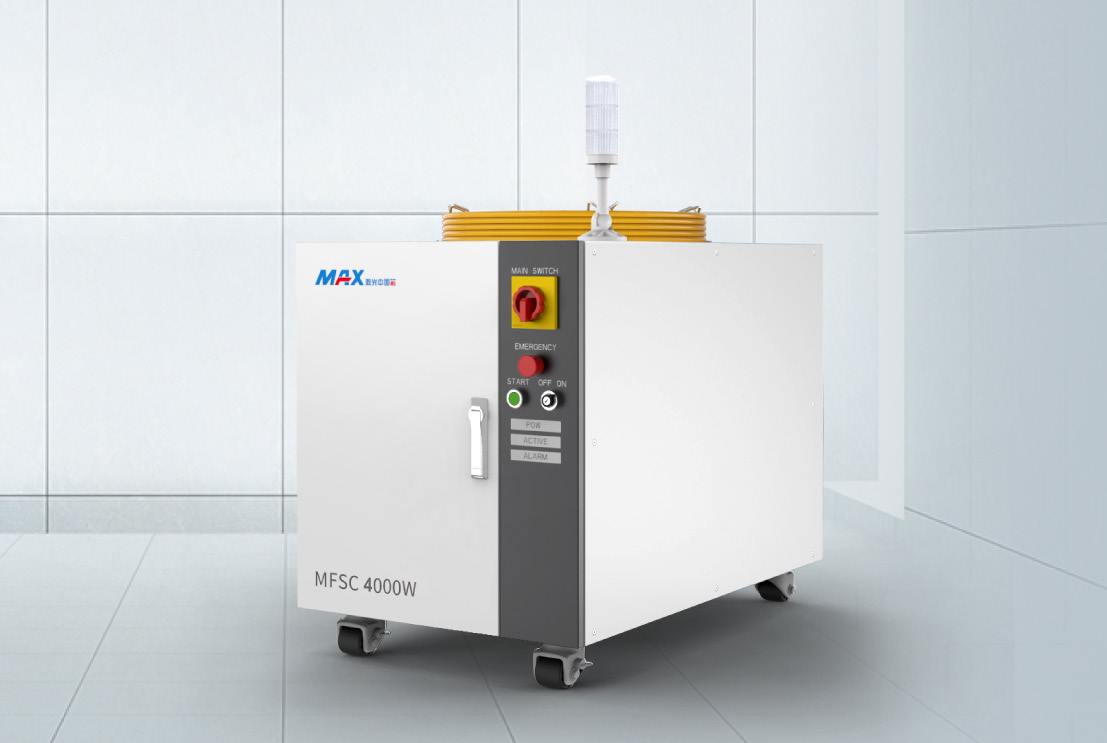

MFSC1000~6000W Single Module CW Fiber Laser

1-Up to 6KW Output From CW Single Module Series

Better beam quality vs. multi module lasers. Greatly improved efficiency.

2-Excellent Material Processing Performance

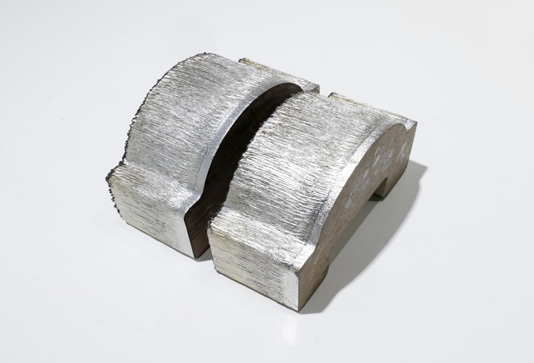

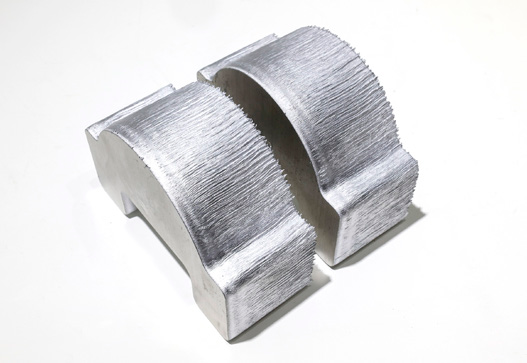

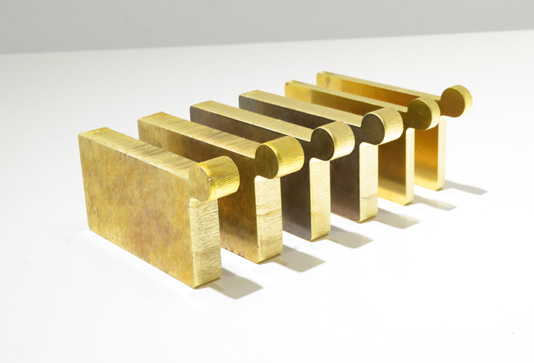

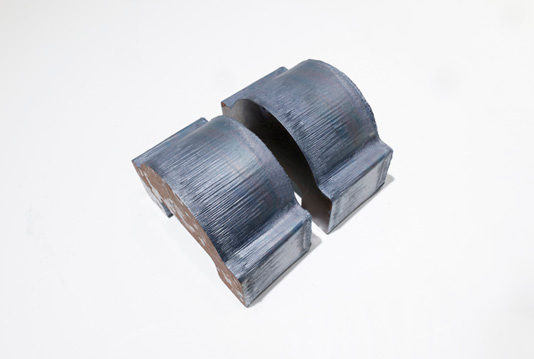

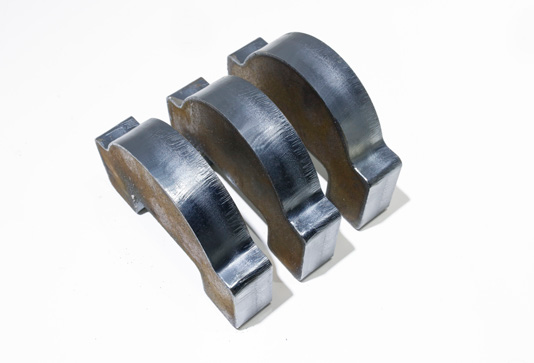

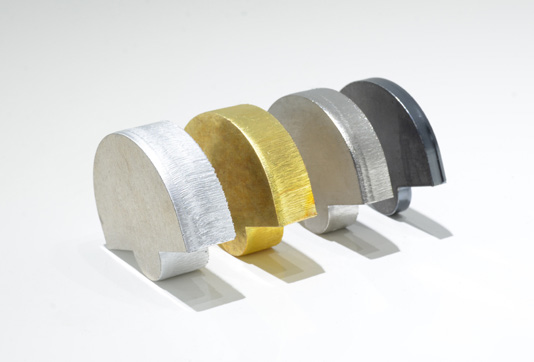

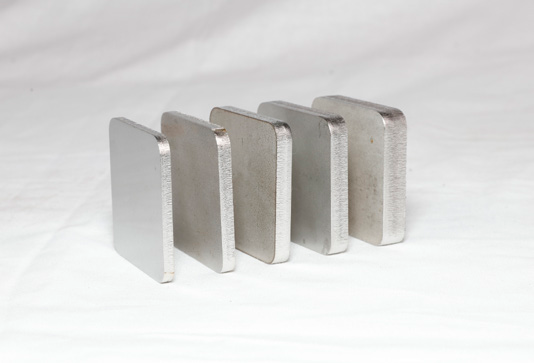

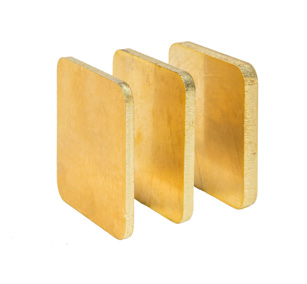

High speed in thin sheet cutting. Strong capability in thick material processing.

3-Compact Design, Maintenance Free

Highly integrated system with modular design. Easy maintenance significantly reduce TCO.

4-Smaller Size with Higher Stability

>60% reduction in volume. Higher flexibility when integrated in to system.

5-High Level Vertical Integration

All key components are designed and produced in house. Strict quality control, high consistency and reliability.

MFSC6000~20000W Single Module CW Fiber Laser

1-High Power with Great Beam Quality

High power density with flat-head distribution. High wall-plug efficiency.

2-Even Energy Distribution

Less splash during cutting and welding.

3-Excellent Material Processing Performance

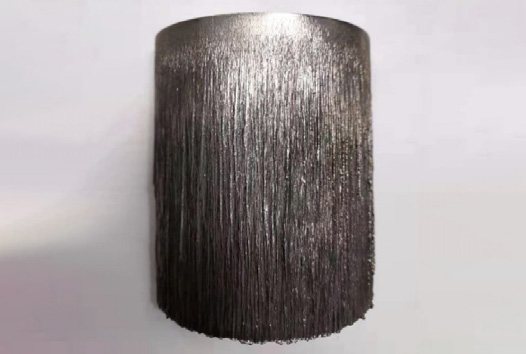

High speed in thin sheet cutting. Strong capability in thick material processing.

4-Compact Design, Maintenance Free

Highly integrated system with modular design. High stability and easy maintenance significantly reduce TCO.

5-Best Choice for Cutting and Welding

Widely used in hardware processing, automobile, shipping,construction machinery, medical industries and more.

|

Technical Parameter

Models	MFSC-1000W	MFSC-1500W	MFSC-2000W	MFSC-3000W	MFSC-4000W	MFSC-5000W	MFSC-6000W
OPTICAL SPECIFICATIONS
Nominal Power	1000W	1500W	2000W	3000W	4000W	5000W	6000W
Mode of Operation	CW/Modulated
Polarization	Random
Power Tunability	10 to 100%
Wavelength	1080 ± 10 nm
Power Stability	±1 %
Laser Beam Quality, BPP	1~1.5 mm x mrad (50μm QBH)		1.1 to 1.5 mm x mrad(50um QBH)			2.8 to 3.6 mm x mrad (100μm QBH)
			2.8 to 3.6 mm x mrad(100um QBH)
Modulation Frequency	≤ 20kHz		≤ 5kHz
Preview Red Light Power	150 μW		200 μW
FIBER DELIVERY SYSTEM
Interface	QBH(LOC)
Length	10m standard, other lengths optional	15m standard, other lengths optional		20m standard, other lengths optional
Diameter	50 μm		50(100/200) μm			100(150/200) μm
Bending Radius	200 mm
ELECTRICAL RATINGS
Supply Voltage	220VAC (-15% to +10%) Single-phase		400VAC (-15% to +10%) 3-phase
OTHER SPECIFICATIONS
Operating Temperature	+10 to +40℃
Storage Temperature	-10 to +60℃
Humidity	10 to 85%
Cooling Method	Water Cooling
Cooling Medium	Distilled water/ Glycol Antifreeze
Dimension	482.6x700x172 mm		482.6×950×193 mm		640×1173×1102 mm
Weight	53(±3)kg	57(±3) kg	72(±3) kg	80(±3) kg	200(±20) kg	240(±20) kg

Models	MFMC-6000W	MFMC-12000W	MFMC-15000W	MFMC-20000W
OPTICAL SPECIFICATIONS
Nominal Power	6000W	12000W	15000W	20000W
Mode of Operation	CW/Modulated
Polarization	Random
Power Tunability	10 to 100%
Wavelength	1080 ± 5 nm
Power Stability	±1 %
Laser Beam Quality, BPP	3.5 to 4.5 mm x mrad (100μmQBH)
	5 to 6.5 mm x mrad (150μmQBH)
	6.5 to 9 mm x mrad (200μmQBH)
Modulation Frequency	≤ 5kHz
Preview Red Light Power	200 μW
FIBER DELIVERY SYSTEM
Interface	QBH	LOE
Length	20m standard, other lengths optional
Diameter	100/150/200 μm
Bending Radius	200 mm
ELECTRICAL RATINGS
Supply Voltage	400 (-15% to +10%) VAC 3-phase
OTHER SPECIFICATIONS
Operating Temperature	+10 to +40℃
Storage Temperature	-10 to +60℃
Humidity	10 to 80%
Cooling Method	Water Cooling
Cooling Medium	Distilled water/ Glycol Antifreeze
Dimension	1050×1385×1658 mm
Weight	534(±4) kg	646(±5) kg	726(±5) kg	815(±5) kg
