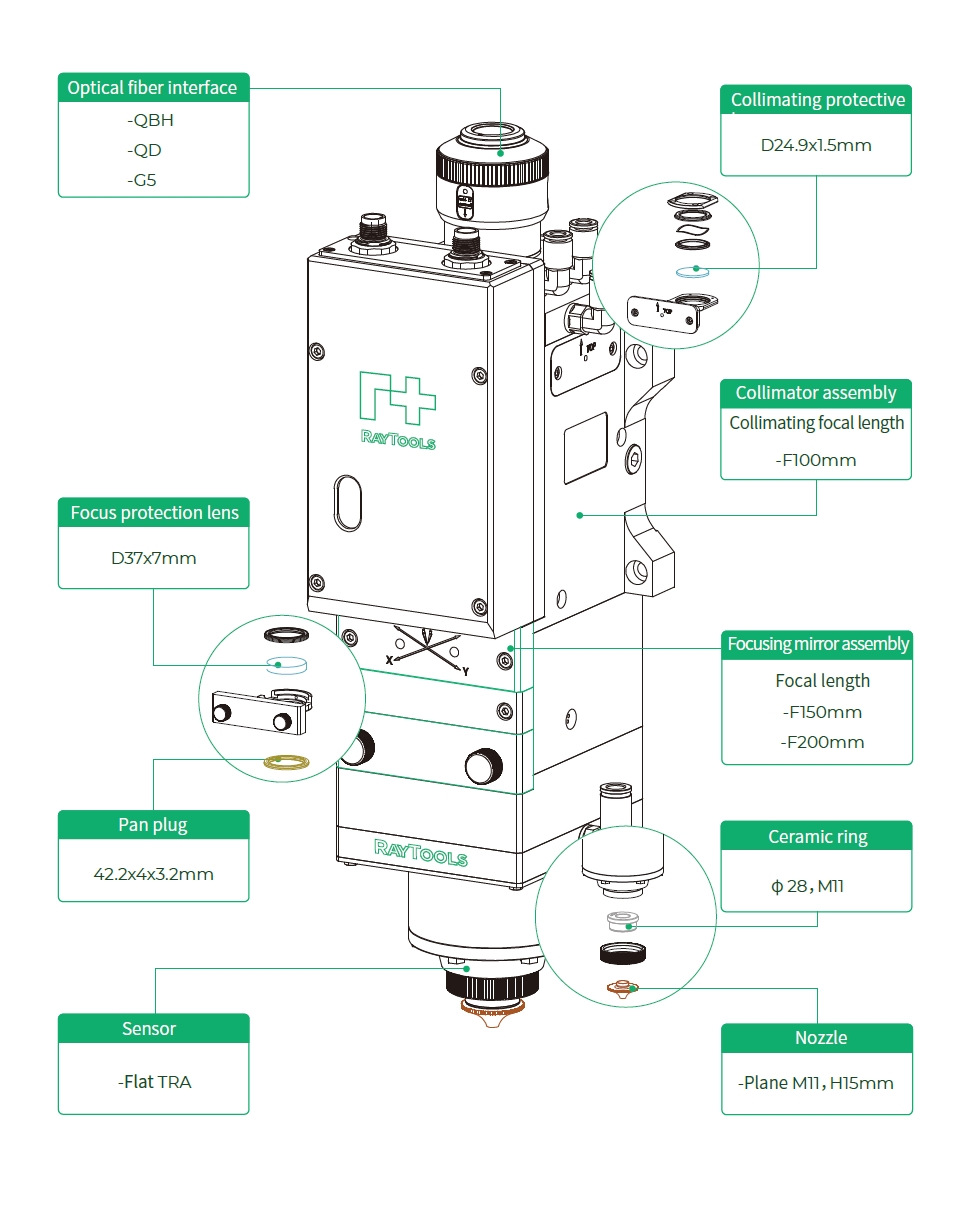

Product Description
High Efficiency Cooling
Collimation and focusing lenses are both water cooled. Increase air flow cooling for nozzle, effectively protect the nozzle and ceramic part and the lifetime.
Fast Zoom
Using collimation and focusing, compared with focusing and focusing, the focus moves faster and the focusing range is larger.
Intelligent Monitoring
With the temperature monitoring function of the lower protective lens, the temperature data can be displayed in real time through the mobile APP or computer desktop window, and the overtem-perature output alarm can effectively protect the optical path system of the cutting head.
Multiple Cover Glass Protection
Four protective lenses are designed to effectively reduce the pollution caused by replacing the optical fiber and the protective lens, and greatly prolong the service life of the collimating and focusing lenses.
Excellent Design
The integrated body design ensures sealing. Improve the QBH、G5 fiber interface, improve the compatibility of the laser, and no longer get stuck due to water leakage, rust, etc.
Technical parameter
Power Rate 6000W
Auto Focus
-Range -35mm~+25mm
-Velocity ≤200mm/s
-Acceleration ≤10m/s2
-Accuracy 0.01mm
Numerical Aperture 0.14
Nozzle Styles Single,Double,Custom
Diameter of Nozzle Tip 1.0mm,1.2mm,1.5mm,2.0mm,2.5mm,3.0mm,3.5mm,4.0mm,4.5mm,5.0mm
Assist Gas Pressure ≤30bar
Weight ~7.5kg
* Specifications are subject to change without prior notice, please contact customer service for details
|
