FSCUT5000 series is EtherCAT bus system specially designed for fiber laser tube cutting machine. FSCUT5000A applied to 3-chuck delivering structure, FSCUT5000B applied to 2-chuck structure, work with TubesT 3D nesting software, it will achieve most efficiency and minimum waste.
| Product accessories list | |||
| FSCUT5000B bus numerical control system (five-axes) | |||
NO. | Name | Specification and model | pcs |
| 1 | CypTronic Pro-E Bus CNC host (5 axes) | CypTronic Pro-E bus CNC host, EtherCAT master station, five-axis version | 1 |

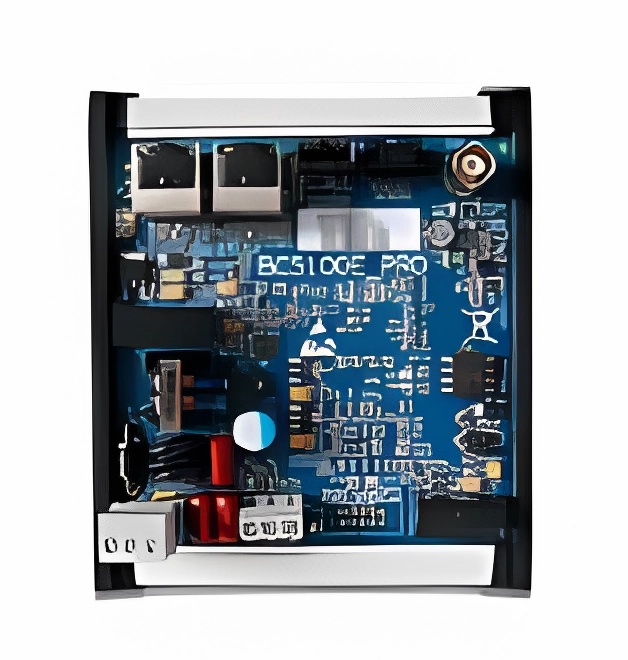

| 2 | BCS100E motion control | Capacitive height adjuster,EtherCAT bus network interface, sheet metal shell | 1 |

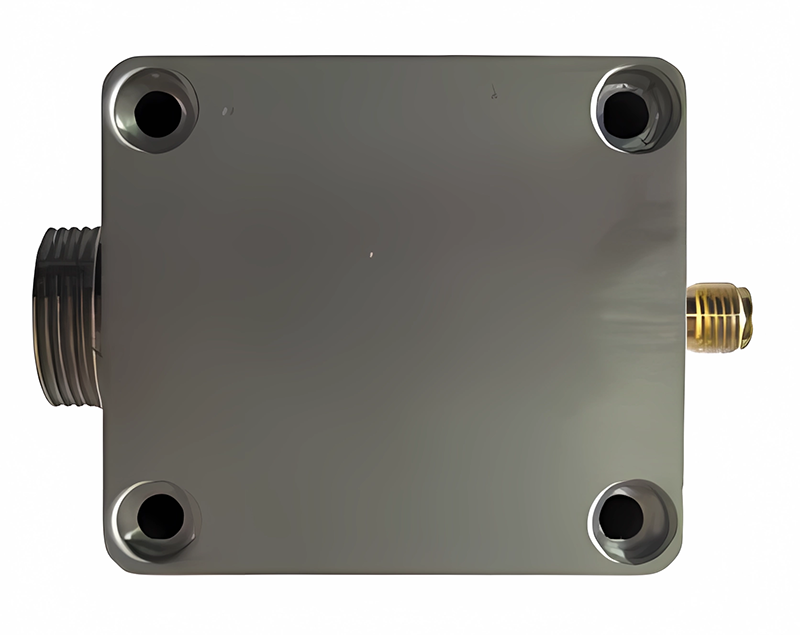

| 3 | BCL AMPlifier | Preamplifier, capacitance sensor, SMA interface | 1 |
| 4 | WKB V6 wireless hand-held remote | WKB V6 wireless hand-held box with 32 buttons | 1 |

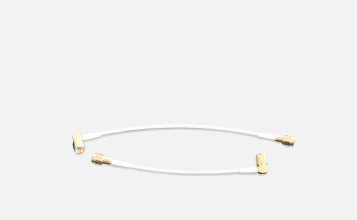

| 5 | SPC-140 RF short cable | RF short cable, 140mm in length | 2 |
| 6 | HC 4-pin cable | The whole length is 15m, and the aviation plug is glued | 1 |
| 7 | BCL4516E terminal board | Wiring terminal board, network interface, 18 in and 16 out | 1 |
| 8 | LAN-0.3X network cable | The whole length is 0.3 meters, CAT 5e,568A-568B | 4 |
| 9 | LAN-1X network cable | The whole length is 1 meters, CAT 5e,568A-568B | 3 |
| 10 | LAN-3X network cable | The whole length is 3 meters, CAT 5e,568A-568B | 1 |
| total | 16 | ||
| TubesT 3D nesting software | |||
NO. | Name | Specification and model | pcs |
| 1 | Dongle TubesT Encryption suite | Encryption suite for TubesT software | 1 |
| FSCUT 5000A bus numerical control system (seven-axes) | |||
NO. | Name | Specification and model | pcs |
| 1 | CypTronic Pro-E Bus CNC host (seven axes) | CypTronic Pro-E bus CNC host, EtherCAT master station, seven-axis version | 1 |
| 2 | BCS100E motion control | Capacitive height adjuster,EtherCAT bus network interface, sheet metal shell | 1 |
| 3 | BCL AMPlifier | Preamplifier, capacitance sensor, SMA interface | 1 |
| 4 | WKB V6 wireless hand-held remote | WKB V6 wireless hand-held box with 32 buttons | 1 |
| 5 | SPC-140 RF short cable | RF short cable, 140mm in length | 2 |
| 6 | HC 4-pin cable | The whole length is 15m, and the aviation plug is glued | 1 |
| 7 | BCL4516E terminal board | Wiring terminal board, network interface, 18 in and 16 out | 1 |
| 8 | LAN-0.3X network cable | The whole length is 0.3 meters, CAT 5e,568A-568B | 6 |
| 9 | LAN-1X network cable | The whole length is 1 meters, CAT 5e,568A-568B | 3 |
| 10 | LAN-3X network cable | The whole length is 3 meters, CAT 5e,568A-568B | 1 |
| total | 18 | ||
| TubesT 3D nesting software | |||
NO. | Name | Specification and model | pcs |
| 1 | Dongle TubesT Encryption suite | Encryption suite for TubesT software | 1 |
Accessories display：
|
|
|
| CypTronic Pro-E Bus CNC host | BCL4516E terminal board | BCS100E motion control |
 | |  |
| BCL AMPlifier | VKB V6 | HC 4-pin cable |
 |  | |
| SPC RF cable | LAN-0.3X/LAN-1X/LAN-3X |
|
Product Characteristics
Zero-tail Cutting Save material and improve productivity. | |
7-Axis Pulling 3-chuck dual chuck pulling. Dual pulling main chuck added on 2-chuck machine, easy to unload. | |
Bevel Cutting Matched with drawing generated by nesting software to cut. | |
3-Chuck Cutting 3-chuck full range, improve accuracy by preventing tube shaking. | |
4-Chuck Cutting 4-chuck heavy tube cutting, loading and unloading. |
|
